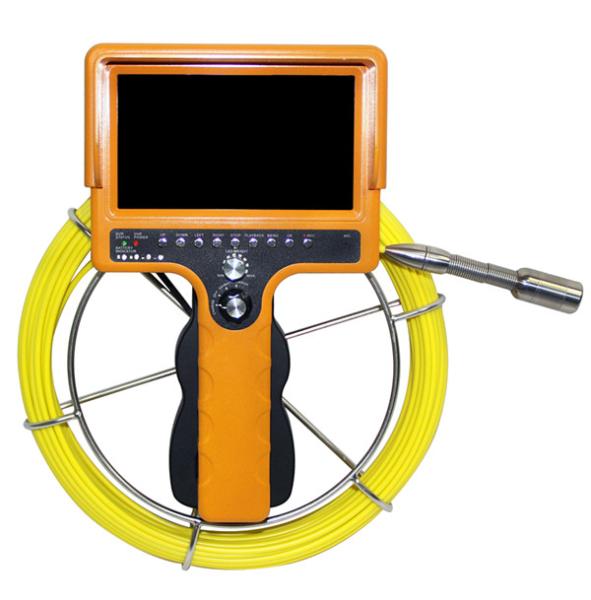

Camera

Control Box

Cable Wheel

Camera size: ø23mmX120mm

Sensor size:1/4 inch

View angle:120°

Leds adjustable

Camera work current:100M；

Camera power supply:DC 12V

Camera light:12PCS white LEDS

TotalPixels:

PAL:710X576;
NTSC:720X480

Camera glass material:sapphire glass

Camera shell material:stainless steel

DVR power supply:12V

DVR work current:200MA

Storage medium:SD card(max 32G)

Digital clock and digital calendar

Battery level display

DVR Total Pixels:720X576 (D1)

Picture snap and movie record

Movie format:AVI

Microphone Audio record

Stereo earphone output

Cable size: ø320mmX110(h)

Wire material:fiberglass rod

Fiberglass length:20m(standard)

Fiberglass diameter: ø4.8mm

Fiberglass

color:yellow

LI-ION Battery

Monitor

Keyboard

Total Power:14W

Charge time:5hours

Protective voltage:8.1V

12V 4000MAH li-ion

battery(18650)

Work time: ≧260minutes

Monitor size:7inch TFT color

Monitor Total Pixels:1440X234

Monitor power supply: DC 12V

Osd language: English

Up, down, left, right adjustable

16:9&4:3 model

Sunshade include

Keyboard size:220X110X15mm

Language: English

Keyboard interface: USB import

Text edit line:

PAL 28 letter 15 line

NTSC 26 letter 12 line

Max edit page: 4 pages

MICROPHONE

CHARGER

Case

Frequency response: 20-20KHz

Sensitivity: -47DB±2DB

Output impedance: ≤2.2KΩ

Line Length: 1 m

Input: AC100-240V~50/60Hz

Output: DC 12V/1000MA

DC plug diameter: 2.1mm

Size:L520*W435*H200mm

Material: engineering plastics

Empty case weight: 5.9 kg

Water proof

Color: orange/green/black

Special
Camera shell material:Stainless steel

Camera glass material:Sapphire glass

View angle:120°

Camera light:12pcs high light white LEDS

Storage medium:SD card(max 32G)

Microphone Audio record

Stereo earphone output

Wire wheel wearable connector

Operating temperature: -10 to 50 degrees Celsius,

RH 95% maximum

Storage temperature: -20 to 70 degrees Celsius,
